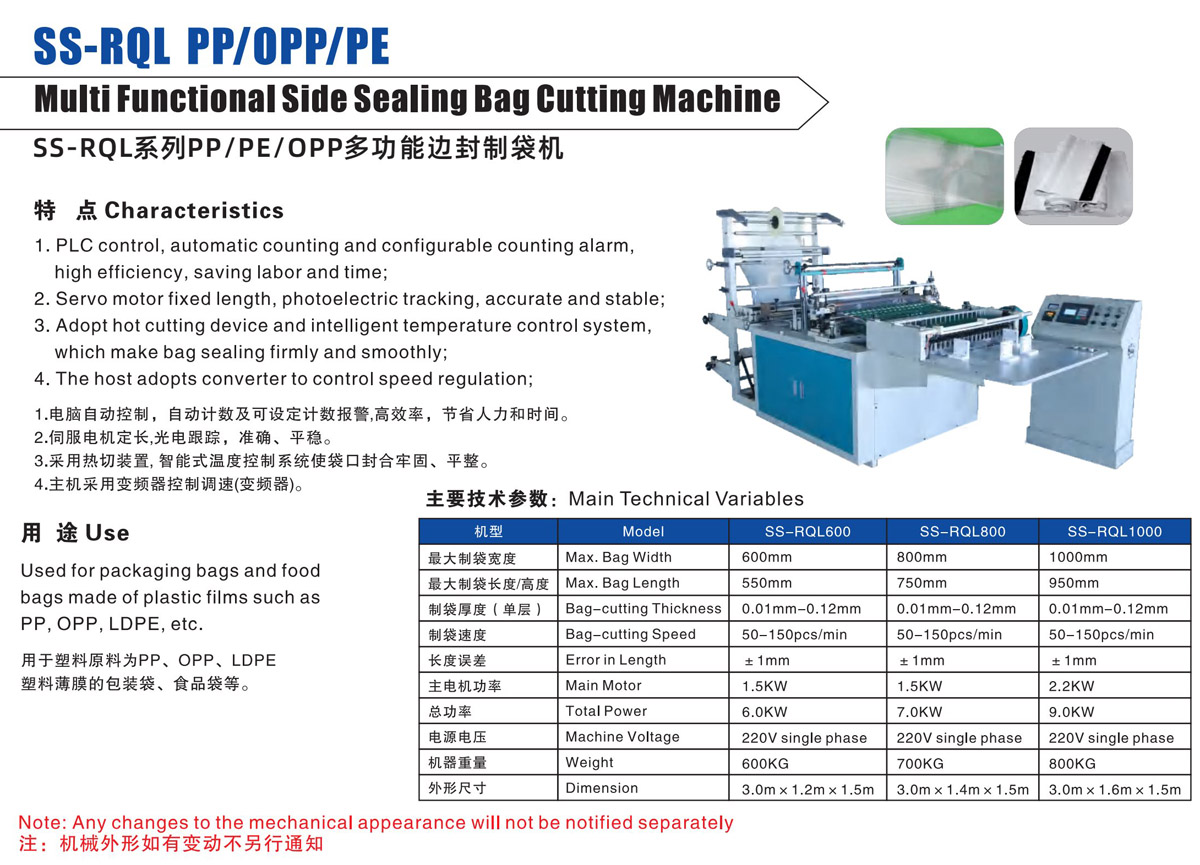

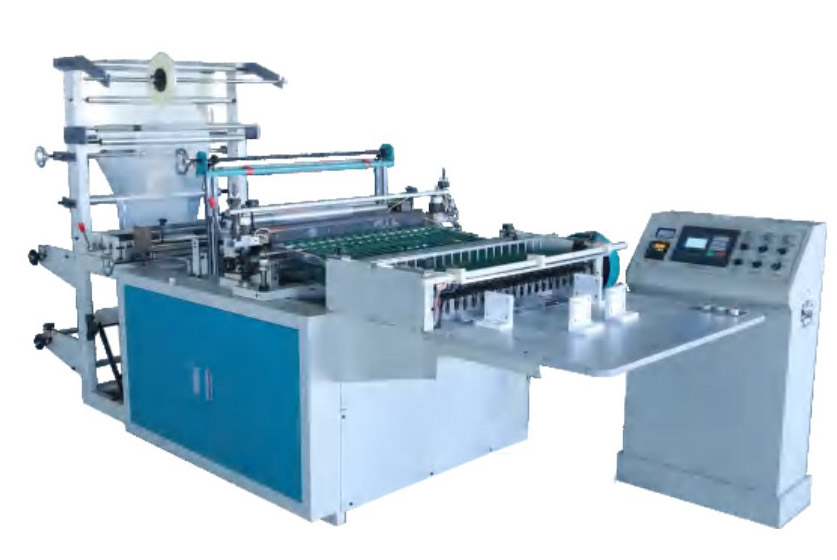

SS-RQL Series PP/PE/OPP Multi-functional Side Sealing Bag Making Machine
SS-RQL Series PP/PE/OPP Multi-functional Side Sealing Bag Making Machine
用途USE
Used for packaging bags and food bags made of plastic films such as PP, OPP, LDPE, etc.
特点characteristic
1. PLC control, automatic counting and configurable counting alarm, high efficiency, saving labor and time;
2. Servo motor fixed length, photoelectric tracking, accurate and stable;
3. Adopt hot cutting device and intelligent temperature control system, which make bag sealing firmly and smoothly;
4. The host adopts converter to control speed regulation;
主要技术参数Main Technical Parameters
|
型号 |
Model |
SS-RQL600 |
SS-RQL800 |
SS-RQL1000 |
|
最大制袋宽度 |
Max. Bag Width |
600mm |
800mm |
1000mm |
|
最大制袋长度/高度 |
Max. Bag Length |
550mm |
750mm |
950mm |
|
制袋厚度（单层） |
Bag-cutting Thickness |
0.01mm-0.12mm |
0.01mm-0.12mm |
0.01mm-0.12mm |
|
制袋速度 |
Bag-cutting Speed |
50-150pcs/min |
50-150pcs/min |
50-150pcs/min |
|
长度误差 |
Error in Length |
±1mm |
±1mm |
±1mm |
|
主电机功率 |
Main Motor |
1.5KW |
1.5KW |
2.2KW |
|
总功率 |
Total Power |
6.0KW |
7.0KW |
9.0KW |
|
电源电压 |
Machine Voltage |
220V single phase |
220V single phase |
220V single phase |
|
机器重量 |
Weight |
600KG |
700KG |
800KG |
|
外形尺寸 |
Dimension |
3.0m×1.2m×1.5m |
3.0m×1.4m×1.5m |
3.0m×1.6m×1.5m |
